Bitumen / Asphalt Testing Equipments

Leading Manufacturers, Exporters, Wholesaler, Retailer of AUTOMATIC COMPACTOR FOR BITUMINOUS MIXES, Benkelman Beam, Bitumen Extractor Electrically Operated, Ductility Testing Apparatus, Hand Operated Bitumen Extractor, Marshall Stability Test Machine, Pavement Core Drilling Machine, STANDARD TAR VISCOMETER, Steel Straight Edge and Stripping Value Apparatus from Delhi.

1.00 - 10.00 / Piece

1 Piece (MOQ)

Get Best Price
Business Type Manufacturer, Exporter, Supplier
Driven Type Electric
Color Blue, Grey, Light White
Condition New
Automation Grade Automatic
Voltage 220V
Product Code MSI 4032
Payment Terms D/P, T/T

Preferred Buyer From

Location Anywhere in India

Standard Used : BS 598-107

Rugged construction to withstand hard work

Fully automatic and easy to operate

Uniform compaction

Automatic Preset Blow Counter

Specification: The Automatic Compactor eliminates the laborious process of manual compaction and an even degree of compaction is achieved. The driven mechanism lifts the weight of 4.5kg and drops it through a correct height of 457 mm. The rammer foot is removable, which facilitates preheating. A compaction pedestal with specimen holder is fixed to the base. An Automatic Blow counter enables the number of blows to be present before each test and automatically stops the machine on completion. Suitable for operation on 230 V, 50 Hz, Single Phase,

A.C. supply. Note: Also available for modified compaction test

Read More...


Request to Call


1.00 - 10.00 / Kilogram

1 Piece (MOQ)

Get Best Price
Business Type Manufacturer, Exporter, Supplier
Material Steel
Color Grey, Light White
Condition New
Product Code MSI 4030
Payment Terms D/P, T/T

Preferred Buyer From

Location Anywhere in India

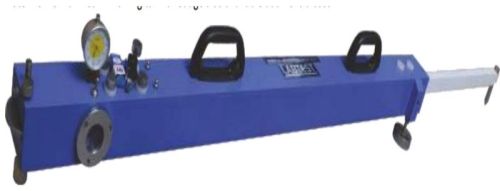

Standard Used : AASHTO T 256

Lightweight Aluminium construction

Ease of Transportation Unique Telescopic Design Simplifying Field set up

Compact,

Thereby reducing the amount of storage space needed Benkelman Beam utilizes the technique of using balanced beam in conjunction with a suitable vehicle to measure road flexure The improved Benkelman Beam is a convenient, accurate device for measuring the deflection of flexible pavements under moving wheel loads. Operating on a simple lever arm principle, the unit consists. Supplied with carrying case Note: Benkelman Beam with Digital Dial Gauge also available at an extra cost

Read More...


Request to Call


1.00 - 10.00 / Piece

1 Piece (MOQ)

Get Best Price
Business Type Manufacturer, Exporter, Supplier
Color Silver
Feature Durable, Easy To Use, Fine Finished, Good Quality, Good Strength, Rust Resistant
Voltage 220 V
Capacity 1000-1500g
Drive Type Electric
Product Code MSi 4014
Payment Terms D/P, T/T

Preferred Buyer From

Location Anywhere in India

Standard Used : ASTM D2172 AASHTO T-58, T-164

Specification: Centrifuge Extractor, Electrical Operation, Capacity 1500g, with a Dimmer stat for speed control from 2,400 to 3,600 rpm. Suitable for operation on 230 V, 50 Hz, Single Phase, A.C. supply.

Read More...


Request to Call


Business Type Manufacturer, Exporter, Supplier, Retailer
Driven Type Electric
Color Blue
Condition New
Automation Grade Automatic
Application Testing Use
Voltage 220V
Type Testing Apparatus
Country of Origin India

Click to view more

Preferred Buyer From

Location Anywhere in India

IS 1208-1058, ASTM D 113, IP32, 55, AASHTO T 51 Designed to test three specimens simultaneously. The machine consists of a carriage moving over a lead screw. An electric motor driven reduction gear unit ensures smooth constant speed and continuous operation. The entire assembly is mounted with a stainless steel lined water bath completely encased in metal bound hardwood. It is equipped with an electric pump circulator and heater. The temperature is controlled thermostatically. Two rates of travel i.e. 50 mm/min and 10 mm/min are provided. Suitable for operation on 230 V, 50 Hz, Single Phase, A.C. supply.

Complete With:

MSI 4025-A Ductility Mould, with Base Plate 3 Nos.

MSI 4025-B Thermometer IP 38° C, Range: 23° C to 27° C

Read More...


Request to Call


1.00 - 10.00 / Piece

1 Piece (MOQ)

Get Best Price
Business Type Manufacturer, Exporter, Supplier
Color Silver
Feature Easy To Use, Fine Finished, Long Life, Rust Resistant
Capacity 1000-1500g
Drive Type Hand Operated
Product Code MSi 4013
Payment Terms D/P, T/T

Preferred Buyer From

Location Anywhere in India

Standard Used : ASTM D2172, AASHTO T-58, T-164.

Specification: The Instrument is used for determination and checking of Bitumen percentage in Bituminous mix, the mix is added with a solvent and dissolved bitumen is removed by centrifugal action. Consists of a removable Aluminum rotor bowl, Capacity 1500 gms. With a cap and tightening nut. The bowl assembly is mounted on a vertical shaft, which protrudes from a cast housing. This shaft and thus the bowl is rotated fast manually by enclosed gears in the cast body and handle. Solvent is introduced during the test through the holes in the cap of the housing. A drain is provided to collect dissolved Bitumen coming out of the rotating bowl and getting collected in the housing.

Read More...


Request to Call


Business Type Manufacturer, Exporter, Supplier
Material Stainless Steel
Driven Type Hydraulic
Application Stability Test
Warranty 1yrs
Country of Origin India

Preferred Buyer From

Location Anywhere in India

MSI 4023-A Automatic Marshall Stability Test Machine, 50 KN, 220-240 V 50-60 HZ MSI

4023-B Breaking Head (Stability Mould) 4”1 Pkt.MSI 4023-C Linear Potentiometric, Displacement Transducer, 25x0.001 mm with Bracket for MSI 4023-A and MSI 4023-B MSI 4023-D Indirect Tensile Splitting Device for Compacted Bituminous Samples 100 mm (4") Dia. EN 12697-34, 12697-23, 12967-12, ASTM D1559, D5581, D 6927; AASHTO T245 The 50 kN capacity Automatic Marshall Stability Test Machine is used to determine the maximum load and flow values of bituminous mixtures. The machine comprises of a robust and compact two column frame with adjustable upper cross beam. The unit is a bench mounting compression frame with motor and worm gear housed within the base unit. The speed of the lower platen can be adjusted between 6 mm/min to 60 mm/min using the data acquisition and control unit. For safety, the up and down travel of the lower platen is limited the use of limit switches. Rapid

Read More...


Request to Call


1.00 - 10.00 / 1 unit

1 Piece (MOQ)

Get Best Price
Business Type Manufacturer, Exporter, Supplier
Material Stainless Steel
Finishing Polished
Driven Type Hydraulic
Specialities Rust Proof, High Performance
Country of Origin India

Preferred Buyer From

Location Anywhere in India

Request to Call


1.00 - 10.00 / piece

1 Piece (MOQ)

Get Best Price
Business Type Manufacturer, Exporter, Supplier
Material Metal
Finishing Polished
Condition New
Power Source Electric
Product Code MSI4021

Preferred Buyer From

Location Anywhere in India

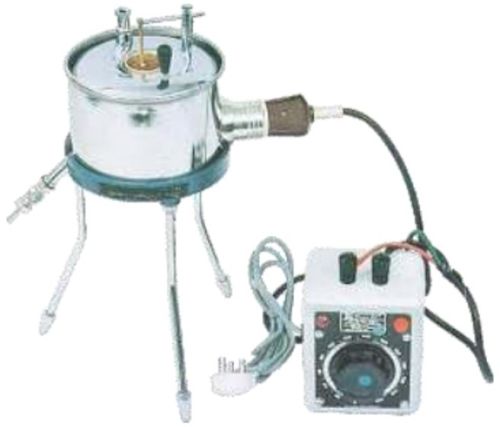

Electrical Heating with Immersion Heating Elements and Dimmer stat for controlling the temperature. Suitable for operation on 230 V, 50Hz, Single Phase , A.C. supply. Supplied complete with 10mm cup and valve.

Read More...


Request to Call


1.00 - 10.00 / Piece

1 Piece (MOQ)

Get Best Price
Business Type Manufacturer, Exporter, Supplier
Material Steel
Finishing Polished
Color Silver-grey
Condition New
Feature Fine Finished, Good Quality
Product Code MSI 4028

Preferred Buyer From

Location Anywhere in India

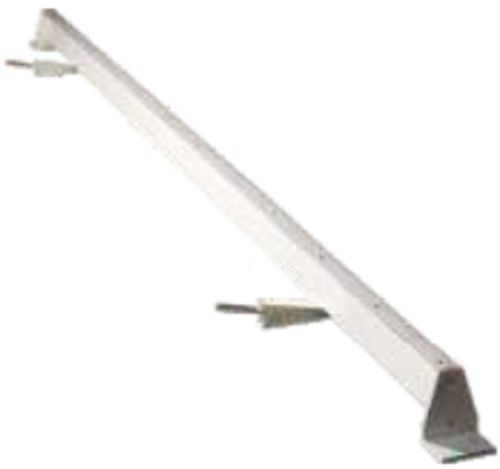

A straight edge approximately 3 meters in length may be used to determine lateral surface regularity of a road surface. This lightweight apparatus is made up of mild steel or aluminum as per customers requirement and is equally supported at both ends producing a set height between the road surface & the beam. Any vertical irregularity is measured using incremented wedges.

Read More...


Request to Call


1.00 - 10.00 / Piece

1 Piece (MOQ)

Get Best Price
Business Type Manufacturer, Exporter, Supplier
Brand Name MSI
Material Mild Steel
Finishing Powder Coated
Driven Type Electric
Color Light White
Condition New
Product Code MSI 4012
Payment Terms D/P, T/T

Click to view more

Preferred Buyer From

Location Anywhere in India

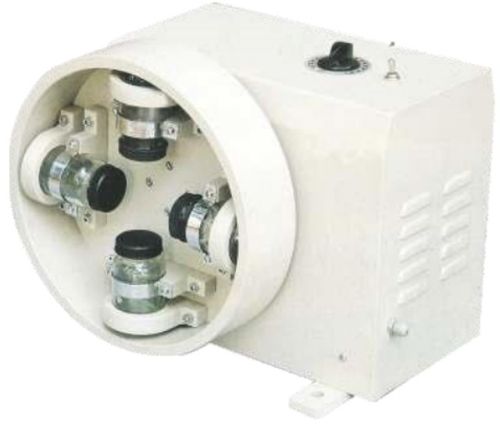

For determining stripping value of bituminous mixes having aggregate size: 1.0mm to 75 micron.

Specification: A circular tray rotates in a vertical plane at a rate of approximately 100 R.P.M. by an electrical geared motor. 4 bottles of approximately 400 cc are mounted on this circular tray at an angle of 900. To each other with their mouth towards center of the tray. A time switch is provided. Suitable for operation on 230 V A.C. Single Phase

Read More...


Request to Call
